Test type: Slip & Tensile Strength, Permanent Elongation & Tensile Strength, Static Tension Test, Static Compression Test, Cyclic Tension & Compression Test
Test method: AC 133: 2010: 4.1, BS 8110: PART 1: 1997 3.12.8.16.2, BS4482, BS4483, BS4449, ASTM A 1034: 10.5, 10.7
Load Frame Configuration: 4 columns, servo-controlled hydraulic
Capacity: 600kN, 1000kN, 2000kN
Test Space: Single zone
Typical specimens: Fasteners, rebar, chain, welds, castings
Specifications:
Model | HUT605 | HUT106 | HUT206 |
Type | DP | ||
Capacity (kN) | 600 | 1000 | 2000 |
Calibration accuracy | Class 1 / Class 0.5 | ||
Force accuracy | Better than ±1%/±0.5% | ||
Force range | 1% ~ 100%FS | ||
Displacement accuracy | Better than ±1%/±0.5% | ||
Extension range | 1% ~ 100%FS | ||
Extension accuracy | Better than ±1%/±0.5% | ||
Extension resolution | 1/500000 of max extension | ||
Position resolution (mm) | 0.01 | ||
Actuator (piston) up speed (mm/min) | 280 | 240 | 195 |
Actuator (piston) down speed (mm/min) | 660 | 375 | 310 |
Force loading speed | 0.02%-2% FS /s | ||
Column number | 4 | 4 | 4 |
Distance between columns (mm) | 575x355 | 585x365 | 770×470 |
Maximum tension space (mm) | 600 | 700 | 800 |
Maximum compression space (mm) | 400 | 480 | 525 |
Diameter of round specimens (mm) | Φ10- Φ20 Φ20- Φ45 | Φ15- Φ35 Φ35- Φ60 | Φ15- Φ40 Φ40- Φ100 |
Thickness of flat specimens (mm) | 2-40 | 2-50 | 2-80 |
Compression platen | Φ150 | 200×200 | Φ240 |
Actuator (piston) stroke (mm) | 580 | 680 | 780 |
Frame dimension (LxWxH) (mm) | 800x600x2890 | 880x660x3380 | 1200x900x3930 |
Frame weight (kg) | 3000 | 5000 | 11000 |
Hydraulic Power Unit dimension (LxWxH) (mm) | 870x1080x1150 | 870x1080x1150 | 860x1350x1350 |
Hydraulic Power Unit weight (kg) | 800 | 800 | 1500 |
Oil tank capacity (Liter) | 210 | 210 | 380 |
Anti-wear hydraulic oil | 46#, L-HM46 or DTE-25 Brand: Mobile, Shell, Great wall, KUNLUN | ||
Flow rate (L/min) / maximum pressure (MPa) | 7.5 / 25 | 11.8 / 25 | 19.2 / 25 |
Main cylinder hoses length | 3.2m x 1 4.0m x 1 | 3.2m x 1 4.0m x 1 | 3.8m x 1 4.5m x 1 |
Upper grip hoses length | 3.5m x 2 | 3.5m x 2 | 4.0m x 2 |
Upper grip hoses length | 2.0m x 2 | 2.0m x 2 | 2.5m x 2 |
Power consumption (kW) | 8 | 11 | 15 |
Power supply | 3-phase, 5-line, AC380V, 50Hz |
This machine is suitable for tensile, compression and flexural tests of fasteners, rebar, chain, welds, castings. Especially this machine can perform tension and compression cyclic test, which can satisfy rebar coupling test.
Test standards
· AC 133: 2010: 4.1
· BS 8110: PART 1: 1997 3.12.8.16.2
· BS4482
· BS4483
· BS4449
· ASTM A 1034: 10.5, 10.7
· Others……….

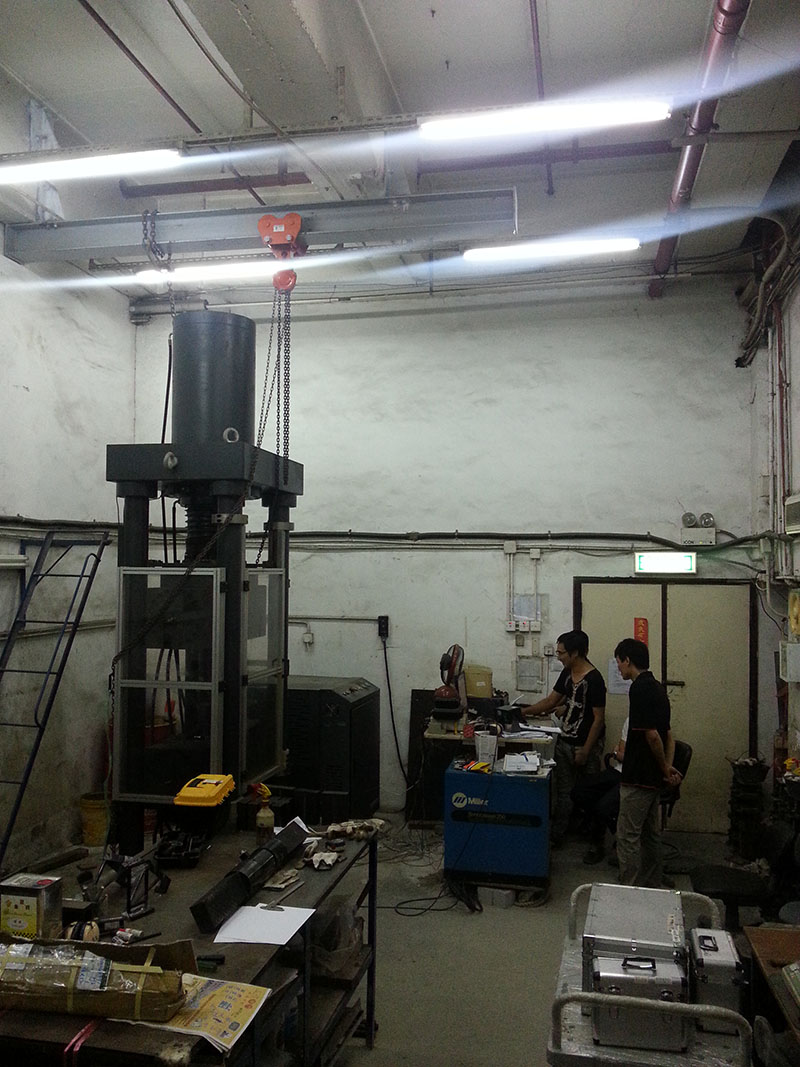

Laboratory of Quality Control Consultants Ltd. (Hong Kong)
