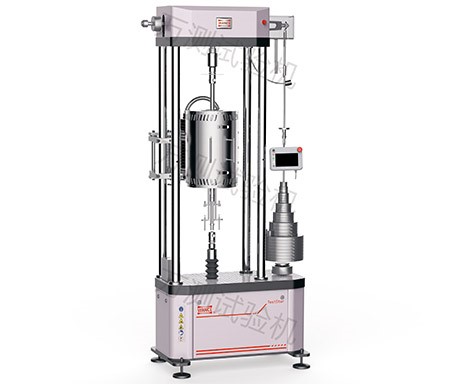

TSC-A dead weight type

This type of machine is designed as low cost solutions for long-term creep and stress-rupture testing applications of metallic and alloy materials under high temperature in accordance with ASTM, BS, EN, ISO and other similar international testing standards.


Standards: GB/T 2039, HB 5151, HB 5150, ISO 204, ASTM E139


Model

TSC304-A

TSC504-A

TSC804-A

TSC105-A

Maximum   force

30KN

50KN

80KN

100KN

Minimum   force

1500N

2500N

4000N

5000N

Force   accuracy

≤±0.5%

Lower   pull rod speed

0.0190mm/min

Lower   pull rod travel

0-200mm

Automatic   level adjustment range

0.1mm

Lever   arm ratio

1:50

Center   alignment accuracy

≤10%

Timing   accuracy

±0.1%

Power   supply

380V±10%50Hz

Power   consumption

0.5KW

0.85KW

Length x width x height

960*540*2400(mm)

1350*700*2430mm

Weight

1000KG

(with weights)

1400KG

(with weights)
