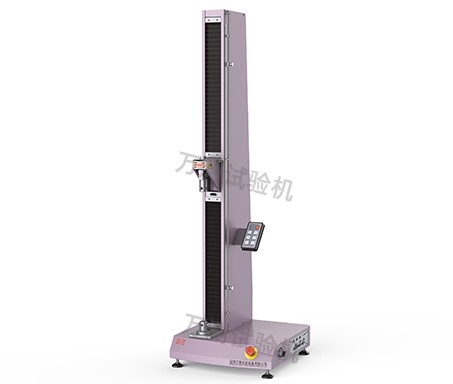

ETM-A Series single column (50N-5kN)

The ETM type A Series addresses the needs of standardized and routine testing, providing the user high quality at the most affordable price. The single column testing systems are suited for tension and/or compression applications where tests are less than 5 kN and lab space is limited. They are typically used for quality control and production testing.

Typical specimens: plastics, fine wire, fibers and threads, biomaterials, thin films, adhesives, foam, packaging, paper products, consumer products

New Features

·        Robust linear motion guide increases lateral stiffness and ensure linear crosshead travel. This results in accurate crosshead alignment thus reducing variability in measurement data and producing better overall accuracy

·        Imported servo motor with precise planet-gear speed reducer provides higher driving efficiency, low noise and free of maintenance. No need replace lubricates which has longer working life.

·        Compact design saves lab space

 High Quality at affordable price

·        Pre-loaded ball screws and heavy duty bearings assure long life with zero backlash as well as linear low force and through zero performance. The result is accurate and repeatable measurements that truly represent the specimen characteristics rather than load frame deficiencies

·        Fully-protected lead screw covers provide longer life and greater operator protection

·        High-speed, low vibration, world-class, maintenance-free, AC servo motor and servo controller

·        Photoelectrical encoder built in servo motor system is for position measurement of crosshead

·        Built-in bidirectional load cell is assembled in the middle crosshead to prevent any collisions and simple to perform compression or tension tests

·        Dual action over-travel limits on all frames provide the highest level of safety and meet all international standards

·        Remote control keypad facilitates test operation

·        Full one-year warranty on parts and labor

·        Free software upgrading

 Full complement of test accessories

Extensive range of accessories to meet test requirements in almost any application or industry: plastics, metals, biomedical, composites, elastomers, components, automotive, aerospace, textiles, and more.

·        Tension grip

·        Peel/tear fixture

·        Compression fixture

·        Flexure fixture

·        Film COF test fixture

·        Exchangeable load cells: 10N~2kN

·        Long travel extensometer

·        Clip-on extensometer

Machine dimension:

Frame type

Width x Depth x Height

A x B x C (mm)

Crosshead travel

H (mm)

Front opening space

L (mm)

Adapter

(mm)

Pin

(mm)

Standard

490×530×1590

1000

100

Ф20

Ф10

 Specifications:

Model

ETM501,ETM102,ETM202,ETM502, ETM103,ETM203,ETM503

Type

Type A, single column

Capacity

50N, 100N, 200N, 500N, 1kN, 2kN, 5kN

Calibration   standard

ISO   7500, Class 1 / Class 0.5

Force   range

0.2%   ~ 100%FS / 0.4% ~ 100%FS

Force   accuracy

±1%   / 0.5% of reading

Force   resolution

1/500000FS

Position   accuracy

0.5%   of reading

Position   resolution

0.042μm

Crosshead   speed

0.001   ~ 500mm/min

Crosshead   speed accuracy

±1.0%   / ±0.5% of set speed

Crosshead   travel (without grip)

1100mm

Dimension

530mm×490mm×1590mm

Power   requirement

Single-phase,   220±10% VAC, 50/60Hz, 200W

Weight

90kg

 Shipping information:

Package

Particleboard pallets and plywood case

Crated dimension (Width x Depth x Height)

700x700*1850mm

Crated weight

130kg


This machine is applicable to various tests, such as tension, compression, flexure, peel, shear, tear, puncture and etc., ranging plastics, fine wire, fibers and threads, biomaterials, thin films, adhesives, foam, packaging, paper products, consumer products.
