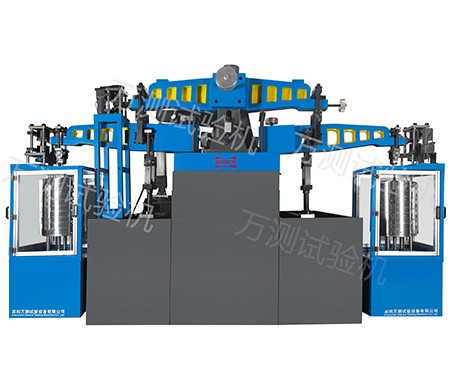

Torque calibration machine

USES:

The statically loaded torque calibration machine is mainly used for the verification and calibration of torque sensors and torque meters of various grades.Using high accuracy weight on the lever to form torque, manual interface and microcomputer control two ways, through the application of software to control the torque standard machine, and measurement data can be automatically calculated, processing, printing and record management.

Complied standards:

Verification procedure for JJG 769-2009 torque standard machine JJG 995 static torque measuring instrument

Torque measuring instrument JJG 557 standard torque meter

Features:

1. Non-contact eddy current displacement sensor is adopted to improve the sensitivity limit and accuracy of the machine;

2, the weight of the loading transmission mechanism using reducer and ball screw synchronous gear belt transmission, to ensure the accuracy and reliability of the transmission, and low noise, smooth operation;

3. Using displacement sensor as the control of weight series, accurate and reliable;

4. It has the function of axial locking, which reduces the influence of the installed sensor on the lever precision;

5. Special test software, full automatic control of loading and unloading, automatic completion of loading and leveling, data collection and processing.

Model

TSM501

TSM103

TSM503

TSM504

Torque Nm

50

1000

5000

50000

Accuracy

0.03

0.05

0.1

0.3

Measurement range Nm

0.5-50

10-1000

50-5000

500-50000

Repeatability R%

0.03,0.05

Torque error δ%

±0.03  ±0.05

Dead weight  %

±0.003±0.005±0.01±0.03

Arm tolerance

±0.01±0.015±0.03±0.05

Machine seat level/1000mm

0.3
