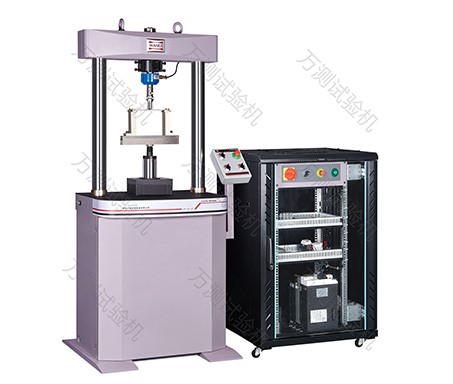

EDT-B electrodynamic and fatigue testing machine

      It is mainly used to test the static and dynamic mechanical properties of small metals, non-metallic materials, spare parts and elastomers. It can realize tensile, compression, bending, tension, compression and tension and other mechanical tests, but also can realize high cycle fatigue, low cycle fatigue, crack growth, fracture mechanics tests, to achieve sine wave, triangle wave, square wave and other waveform output. Equipped with high temperature furnace, high and low temperature chamber and corrosion chamber can realize the mechanical test in different environments.



Features:

  • The upper beam and the lower actuator form a closed frame structure, the frame stiffness is large, no reverse clearance, good stability;

  • Reasonable space design, easy to operate;

  • Adopt integrated linear servo motor cylinder, loading is stable and reliable;

  • Moving beam lifting, locking, sample clamping are operated by the button, convenient and flexible.



Parameters

Model

EDT203B EDT503B EDT104B EDT204B EDT254B

Maximum static force (kN)

2, 5, 10, 20, 25

Maximum dynamic force (kN)

±2, ±5, ±10, ±20, ±25

Force range (kN)

0.2~10 (2%~100%FS)

Force accuracy

0.5%

Actuator travel (mm)

100

Displacement measurement range (mm)

0~100 (±50)

Displacement resolution

0.001

Displacement accuracy

0.5%

Frequency (Hz)

0.01~10

Test waveform

Sine wave, triangle wave, square wave,   etc

Maximum tensile space (mm)

400

Distance between columns (mm)

520

Dimension (mm)

810x720x2180

Weight (kg)

450

Control cabinet (mm)

800x600x1800

Power consumption (kW)

7
