TSE-C seres (5kN~50kN)

Description Applications Contact us

This series of universal tensile testing machine addresses the needs of standardized and routine testing, providing the user high quality at the most affordable price. The dual column testing systems with rugged structure are suited for tension and/or compression applications. They are typically used for quality control and production testing.

Typical specimens: Small components, reinforced plastics, metals, wire, composites, elastomers, wood products, textiles, biomaterials, paper products, adhesives, foam, consumer products

Environmental simulation: Environmental chamber

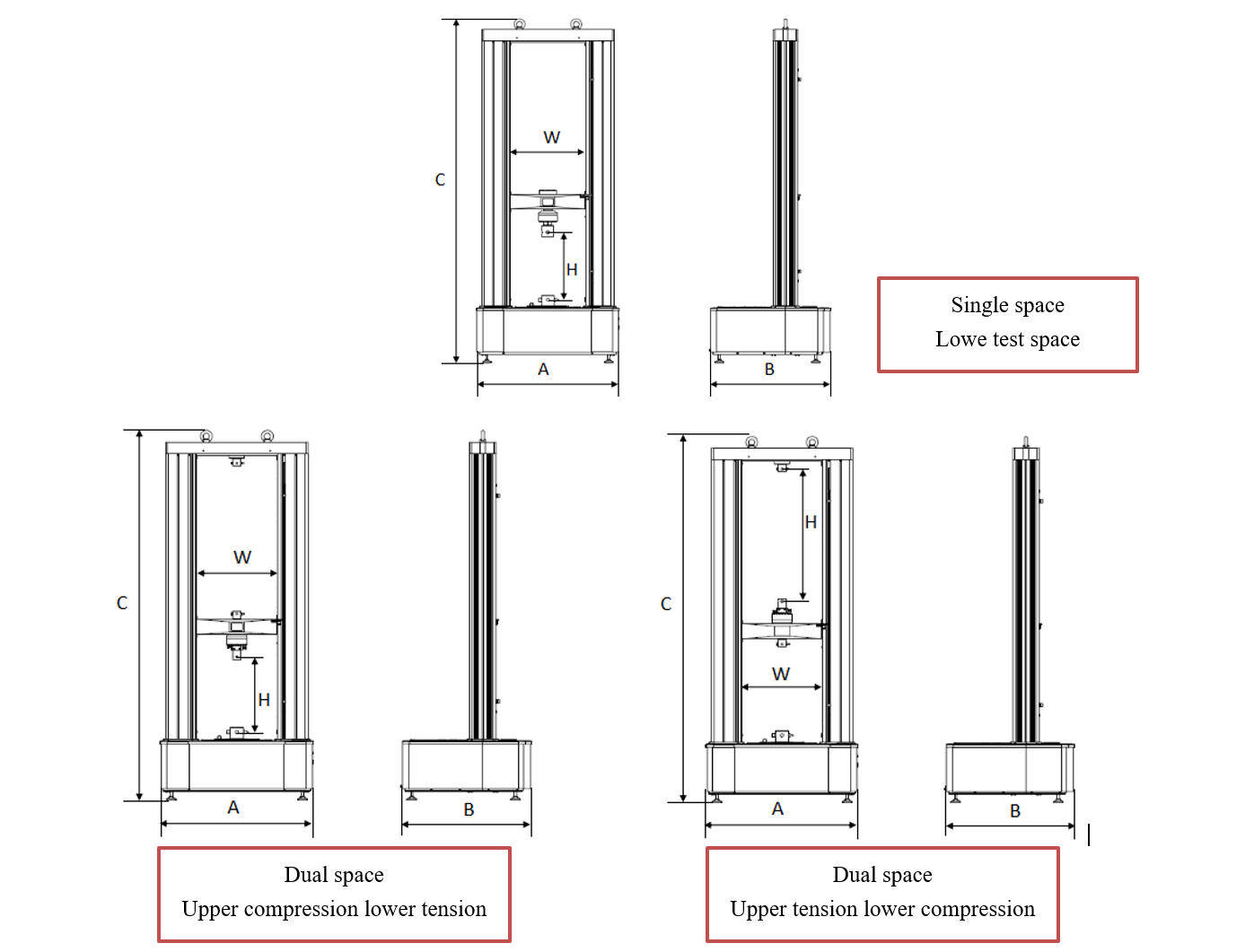

Machine dimension:

Frame type	Dimension	Crosshead travel	Test width
Frame type	AxBxC, mm	H, mm	W, mm
Single lower space	800x680x1840	1050	420
Dual space	800x680x1840	950
Single lower space Extending 300mm	800x680x2140	1350
Dual space Extending 300mm	800x680x2140	1250
Single lower space Extending 600mm	800x680x2440	1650
Dual space Extending 600mm	800x680x2440	1550

Model	TSE504C,TSE254C,TSE104C,TSE503C
Capacity (kN)	50KN, 25KN, 10KN, 5KN
Test space	Single / dual test space
Accuracy	0.5%
Force measurement range	0.4%-100%FS
Force accuracy	±0.50% of reading
Force resolution	1/500000FS
Extension accuracy	±0.50% of reading
Force resolution	1/500000FS
Position accuracy	±0.50% of reading
Position resolution (μm)	0.0576
Crosshead speed (mm/min)	0.005~1000
Crosshead speed accuracy	±0.5% of setting
Power requirement	Single-phase, 220V±10% VAC, 50/60Hz
Power consumption (kW)	1.3
Weight (kg)	400
