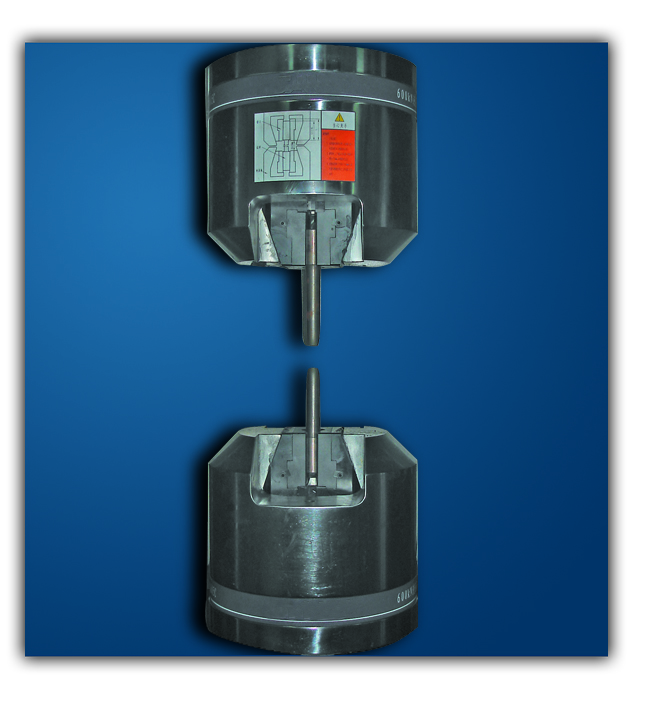

ApplicationTensile test of large size pipe specimensMaximum force100 kNConnectionΦ18 mm pinHeight A 198 mmGrip body width B 300 mmWorking temperatureAmbientClamping typeWedge actionUpper grip weight13.7 kgLower···
ApplicationTensile test of metallic and non-metallic materialsMaximum force10 kNConnectionΦ10 mm pinHeight A 240 mmGrip body width B 148 mmTotal width C 72 mmWorking temperatureAmbientClamping typeWedge actionU···
ApplicationTensile test of metallic and non-metallic materialsMaximum force20 kNConnectionΦ10 mm pinHeight A Upper grip123.5 mm`Lower grip123.5 mm`Grip body width B 108 mmTotal width C 140 mmWorking temperature···
ApplicationTensile test of metallic and non-metallic materialsMaximum force20 kNConnectionΦ10 mm pinHeight A 162 mmGrip body width B 111 mmTotal width C 111 mmWorking temperatureAmbientClamping typeWedge action···
ApplicationTensile test of metallic and non-metallic materialsMaximum force300 kNConnectionΦ28 mm pinHeight A 367 mmGrip body width B 244 mmTotal width C 392 mmWorking temperatureAmbientClamping typeWedge actio···
ApplicationTensile test of metallic and non-metallic materialsMaximum force50 kNConnectionΦ10 mm pinHeight A 236 mmGrip body width B 178 mmTotal width C 337 mmWorking temperatureAmbientClamping typeWedge action···
ApplicationTensile test of metallic and non-metallic materialsMaximum force30 kNConnectionΦ10 mm pinHeight A 240 mmGrip body width B 174 mmTotal width C 346mmWorking temperatureAmbientClamping typeWedge actionU···
ApplicationTensile test of metallic and non-metallic materialsMaximum force20 kNConnectionΦ10 mm pinHeight A Upper grip192 mmLower grip192 mmGrip body width B 128 mmTotal width C 316mmWorking temperature-70℃ ~ ···
ASTMD7137/D7137M-23Standard Test Method for Compressive Residual Strength Properties of Damaged Polymer Matrix Composite PlatesSignificance and Use5.1Susceptibility to damage from concentrated out-of-plane forc···
ASTMD5961/D5961M-23Standard Test Method for Bearing Response of Polymer Matrix Composite LaminatesSignificance and Use5.1Refer to GuideD8509.Scope1.1This test method covers the bearing response of pinned or fas···
