600kN, 1000kN, 2000kN, 3000kN

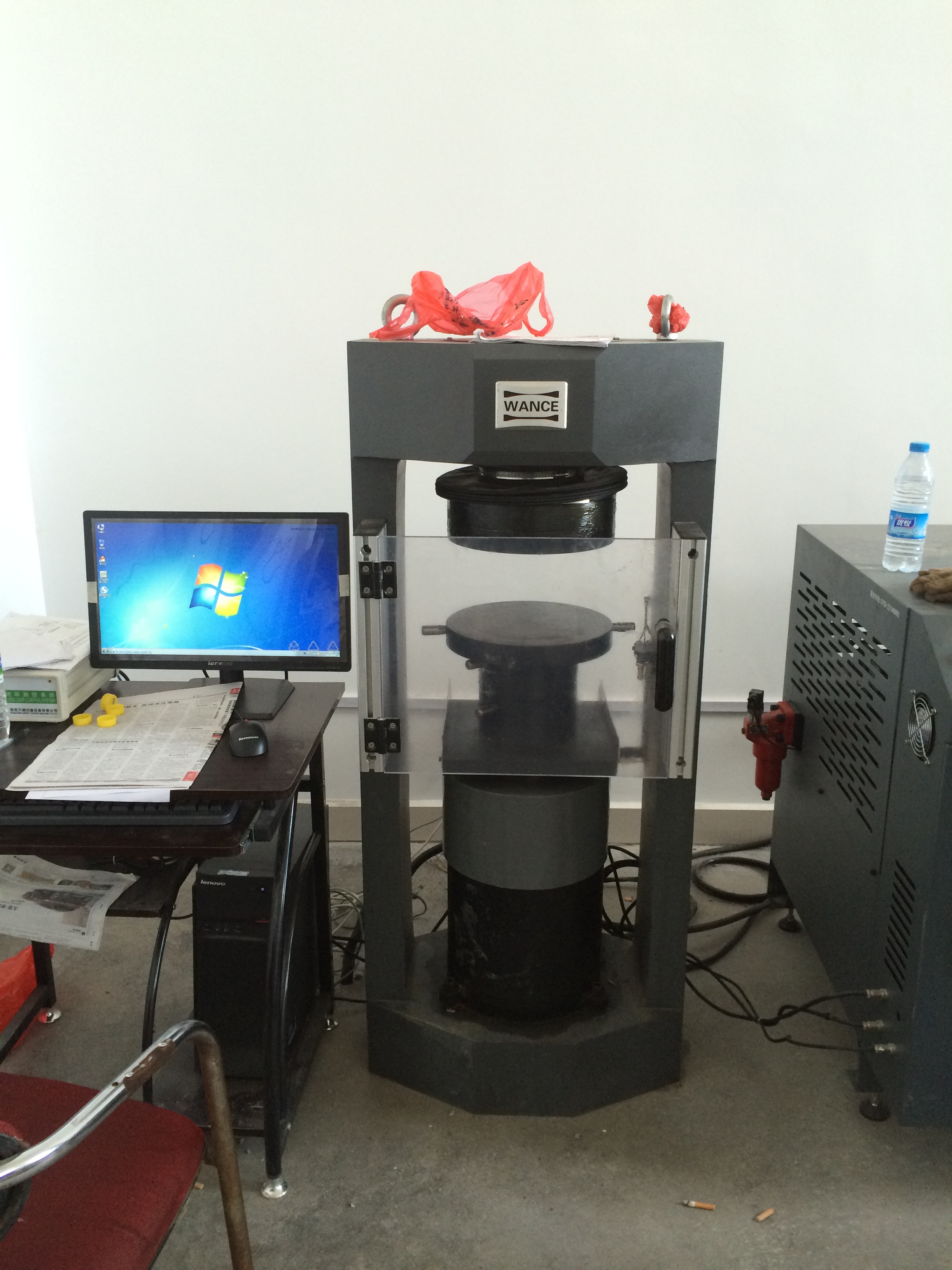

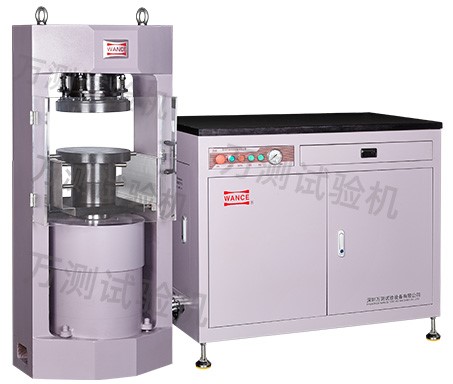

This series of compression testing machine is widely used for compression strength determination of cement, concrete and rock. Equipped with optional fixtures and measurement devices, it can be used for concrete splitting tensile test and flexure test.
CS1, ASTM C39, AASHTO T22, GB/T 50081(Part 6)
1. Compression space is adjusted by spacing block
2. Ergonomically designed load frames ensure safety, reduce operator fatigue, and provide the highest level of flexibility.
3. "Quick Return" hydraulic valve for higher throughput
4. Automatic limit checking for overload, over temperature, over voltage, etc.
5. The system can return automatically, the oil cylinder can return the original position via manual or automatically after finishing testing
6. Imported encoder mounted on the seat is for position measurement of piston with high accuracy
7. Imported servo valve provides high stability and reliability
1. Built-in load cell is assembled inside the piston for direct measurement with high accuracy
2. High precise load cell measures and captures sensitively tension and compression force, high accuracy load measurement resolution reaches 1/500000 with no steps.
3. American brand load cell ensures high precision and repeatability.
1% ~ 100%FS
Column spacing (mm)
Maximum compression space (mm)
Compression platens (mm)
Actuator (piston) stroke (mm)
Testing speed (mm/min)
Piston fast return speed (mm/min)
Force loading speed (kN/s)
Frame dimension (LxWxH) (mm)
Frame weight (Kg)
Power consumption (kw)
Hydraulic Power Unit dimension (LxWxH) (mm)
0il tank volume (L)
HPU Weight (kg)
