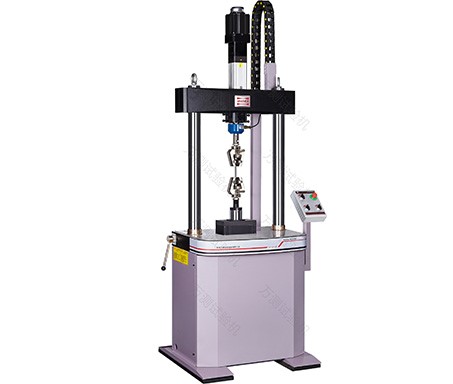

EDT-A electrodynamic and fatigue testing machine

https://www.youtube.com/embed/DaQW59WCeB0?si=cOcL7U8mrJpxV7kJ

This machine is mainly used to test the dynamic and static mechanical properties of small metal, non-metal materials and parts, elastomers and shock absorbers. Complete tensile, compression, bending, low cycle and high cycle fatigue, crack growth, fracture mechanics tests. It can be equipped with high temperature furnace, low temperature chamber, corrosion chamber and other environmental devices to realize the mechanical test of samples in different environments.


Features:

Closed T-table frame structure, frame stiffness, no reverse clearance, good stability. Moving beam lifting, locking and sample holding are all accomplished by button operation. Servo actuator mounted, using bidirectional action non-contact linear motor design, easy clamping, stable lifting.


Parameters

Model

EDT203A EDT503A EDT104A EDT204A EDT254A

Maximum static force (kN)

2, 5, 10, 20, 25

Maximum dynamic force (kN)

±2, ±5, ±10, ±20, ±25

Force range (kN)

0.2~10 (2%~100%FS)

Force accuracy

0.5%

Actuator travel (mm)

100

Displacement measurement range (mm)

0~100 (±50)

Displacement resolution

0.001

Displacement accuracy

0.5%

Frequency (Hz)

0.01~10

Test waveform

Sine wave, triangle wave, square wave,   etc

Maximum tensile space (mm)

400

Distance between columns (mm)

520

Dimension (mm)

810x720x2300

Weight (kg)

450

Control cabinet (mm)

800x600x1800

Power consumption (kW)

7
