General

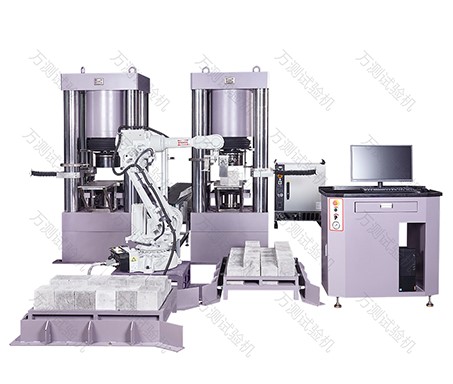

WANCE robotic concrete compression testing machine (twins) can continuously complete the compressive strength test of concrete. The testing machine is mainly composed of oil-electric hybrid servo compression testing machine, six degrees of freedom manipulator, air grasp, vision system, hydraulic servo system and so on. The whole test process without the participation of personnel, can automatically complete the sample, sample information automatic scanning code identification, sample automatic alignment, automatic loading and unloading as well as after the end of the test of qualified and unqualified sample stacking and other processes, to achieve intelligent and automatic testing machine, greatly improve the work efficiency.
Features The main machine structure is safe and reliable, the overall rigidity is good; Constant stress control and load holding function; Imported gear pump and servo motor, quick response, low heat, low noise, high control accuracy; The ball head adopts fully enclosed double spherical structure, which has no clearance and is more reliable. It can realize automatic scanning code identification of sample information, automatic alignment of sample, automatic loading and unloading, etc., and complete the whole process of the test automatically.
Parameters
Model HCT306D-2AR Maximum force 3000kN Force accuracy ±0.5％以内 Platen diameter Ф300mm Platen distance 250mm Piston travel 200mm Specimen size 150×150×150mm, 100×100×100mm Robot working range 1650mm Machine size 1100×730×2300mm Power supply AC 380V±10%，50Hz，6kW Weight 4500 kg
