Functions:

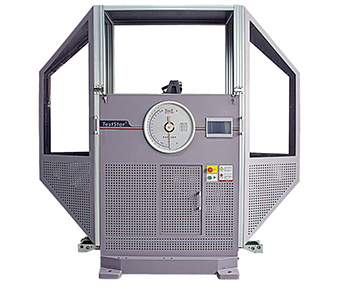

This machine is used for measuring the Charpy impact resistance of metal and other materials

Standards:ISO 148, EN10045, ASTM E23, GB/T 229, GB/T 12778, GOST 9454

Advantages:

·         Pneumatic brake enables pendulum stop at power off or emergency, greatly improving safety;

·         Pneumatic action to lock pendulum when raised to top, greatly improving efficiency and safety;

·         Full-enclosed aluminum protection cover features split type, easy to remove for maintenance. Glass window is convenient to watch test and metal mesh in the lower part ensures highest safety to prevent broken specimen to split;

·         Pneumatic centering device enables fast aligning of specimen, greatly improving working efficiency, especially useful for low temperature test when feeding specimen to lower heat loss;

·         Safety pin to lock pendulum during maintenance, extremely improving safety during maintenance.

·         Optional computer with software control is available to realize semiautomatic operation. Operator only need charge specimens. Others can be controlled by software

·         Optional specimen feeding system is available. Combined with computer and software, fully automatic operation can be realized

·         Optional cooling system is available to satisfy cold specimen test down to -180℃
