Application | Tensile test Safety belt, woven belt |
Maximum force | 50kN |
Connection | |
Upper grip |
|
Lower grip | Φ18mm pin |

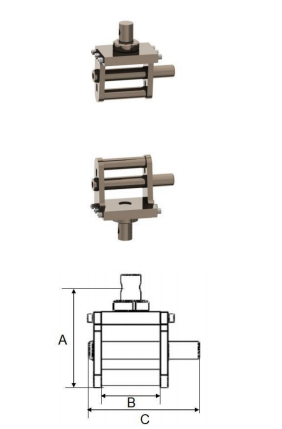

Height (A) | |
Upper grip | 200mm |
Lower grip | 200mm |
Effective width (B) | 120mm |
Grip body width (C) | 225mm |
Working temperature | Ambient |
Clamping type | Wrapping |
Upper grip weight | 7.75kg |
Lower grip weight | 7.75kg |
Specimen size | Width≤120mm Thickness 0.5 ~ 4mm |
