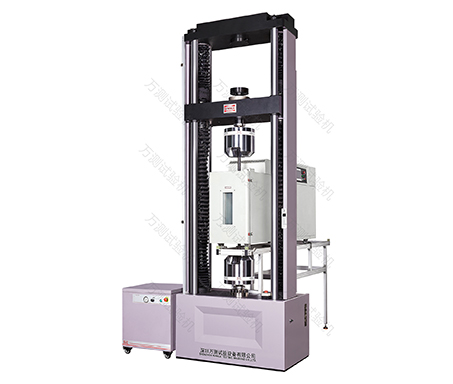

600kN electromechanical tensile universal testing machine is equipped with hydraulic girp and environmental chamber.

Environmental chamber is compressor cooling, which provides temperature from -70℃ to +350℃. It allows the test at high and low temperature.

Model	EMC003B-2	EMC004B-2
Compatible with model	ETM-D
Temperature range, ℃	-70~+350	-40~+350
Wind circulation method	centrifugal blower
Temperature fluctuation, ℃	≤±1
Temperature accuracy	≤±2℃ (≤200℃), ≤±3.5℃ (＞200℃)
Temperature uniformity	≤2℃ (≤200℃), ≤3.5℃ (＞200℃)
Temperature reading accuracy, ℃	≤±0.1℃
Heating time, ℃/min	≥3
Cooling time, ℃/min	≥2
Cooling method	Compressor
Inside dimension (DxWxH), mm	320×300×600
Outside dimension (LxWxH), mm	1900×710×930
Weight, kg	350	330
Heating power consumption, kW	5.3	4.9
Power supply	3-phase, AC380V±10%, 50Hz
Pull rod hole diameter, mm	φ48	φ48
