Application | Tensile test of large size pipe specimens |
Maximum force | 100 kN |
Connection | Φ18 mm pin |

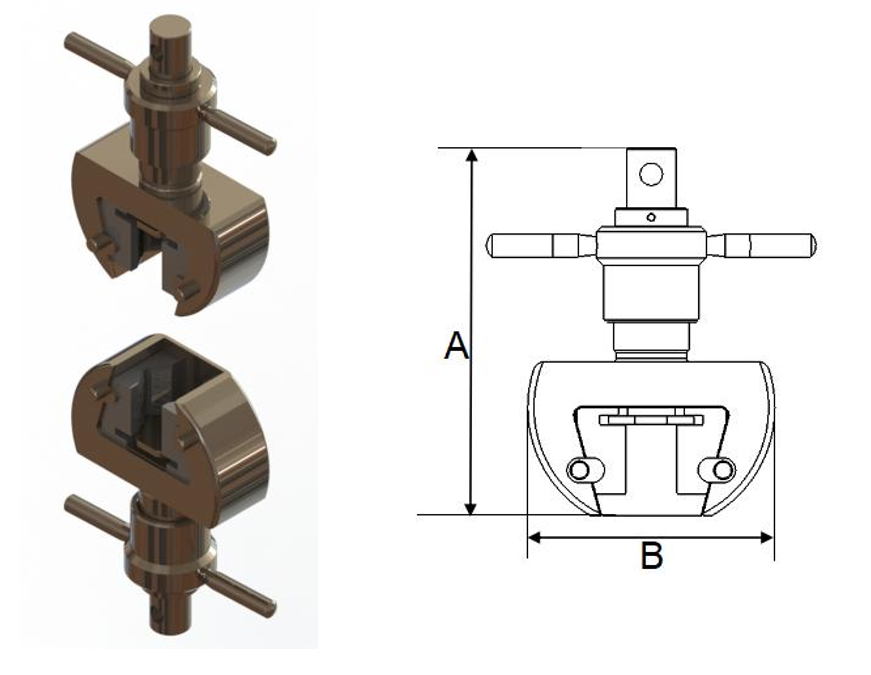

Height (A) | 198 mm |
Grip body width (B) | 300 mm |
Working temperature | Ambient |
Clamping type | Wedge action |
Upper grip weight | 13.7 kg |
Lower grip weight | 13.7 kg |
Grip Jaw | |
Jaw face | Serrated, specimen hardness≦HRC30 |
Height | 70 mm |
width | 64 mm |
Flat jaw face | 0~10mm, 10~20mm, 20~30mm, 30~40mm, 40~50mm |
Vee jaw face | Φ4~Φ10 mm, Φ10~Φ20 mm, Φ20~Φ30 mm Φ30~Φ40 mm, Φ40~Φ48 mm, Φ48~Φ60 mm |
